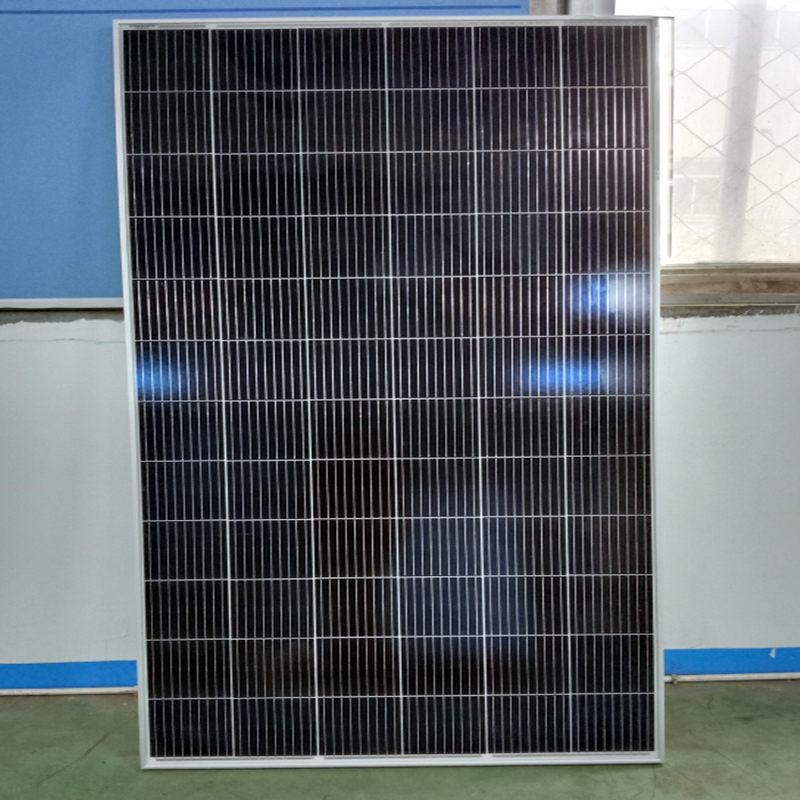

400 watt mono solar panel

MECHANICAL INFORMATION

• Front glass: White tempered safety glass,thickness 4 mm

• Cell encapsulation: EVA(Ethylene Vinyl Acetate)

• Solar cells: 72 cells, 158.75* 158.75Monocrystalline,6 * 12 connected in series

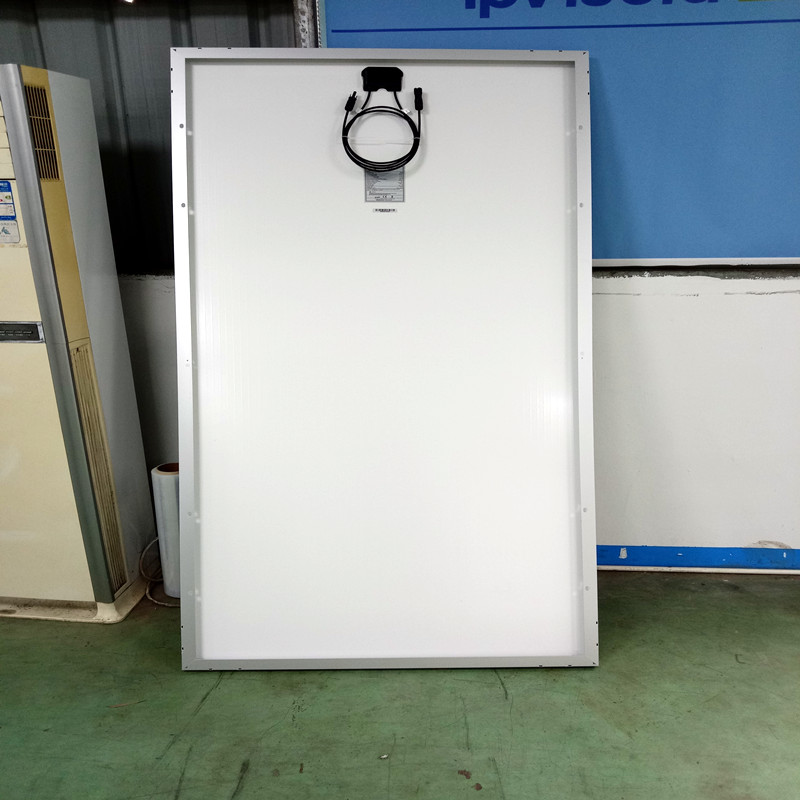

• Back side: white or black composite foil

• Junction Box: 1 rear ventilated junction box

• Cable: PV wire 4 mm².prefabricated with MC4 Solar-connector.or based on customers' inquiry

• Frame: Anodized aluminum frame with twin-wall profile and draining holes,color based on customers'inquiry

• Silicon glue for PV modules: Maximum resistance to ageing,UV-radiation,weathering and plasticizers.Total thickness:approx.1.08 mm


WARRANTIES

• 10 years limited product warranty.

• 12 years warranty on 90% of the minimum output

• 25 years warranty on 80% of the minimum output




Item	YH-400M	YH-395M	YH-315M
Wp	400	395	390
Vmp	39.98	39.80	39.50
Imp	10	9.93	9.88
Voc	48.71	48.50	48.00
Isc	10.70	10.62	10.57
Cell Efficiency%	≥22.03%	≥22	≥21.9
Module Efficiency%	≥22.%	≥21.6%	≥21%
Size of solar cells(mm)	158.75*158.75
Size of Module(mm)	1956*1310*35
Number of cells(Pcs)	72pcs(6*12)
Weight(Kgs)	23.50
Maximum Load Capacity	60m/s(200kg/sq.m)
Maximum System Voltage	1000V




Temperature Coefficient:

Temperature coefficient Voc	-0.35%/°C
Temperature coefficient Isc	+0.05%/°C
Temperature coefficient Power	-0.45%/°C
Operating temperature	-40°C to+ 85°C
Power Tolerance	±5%
Standard Test Conditions	AM1.5,1000W/m²,25℃
