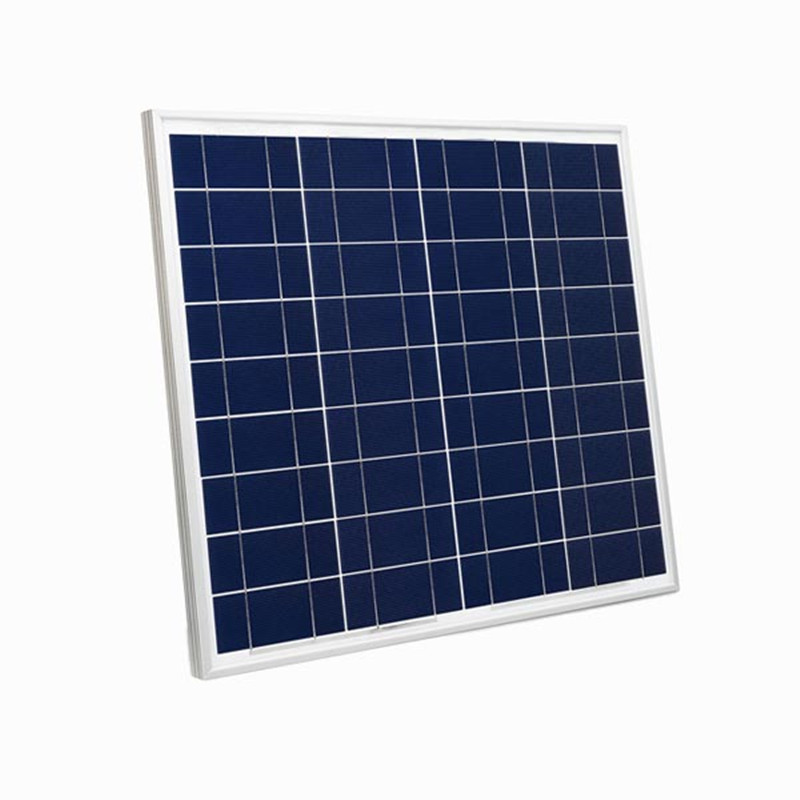

50W Polycrystalline solar panels, 50w poly solar module
MECHANICAL INFORMATION
Front glass: White tempered safety glass,thickness 3.2 mm
Cell encapsulation: EVA(Ethylene Vinyl Acetate)

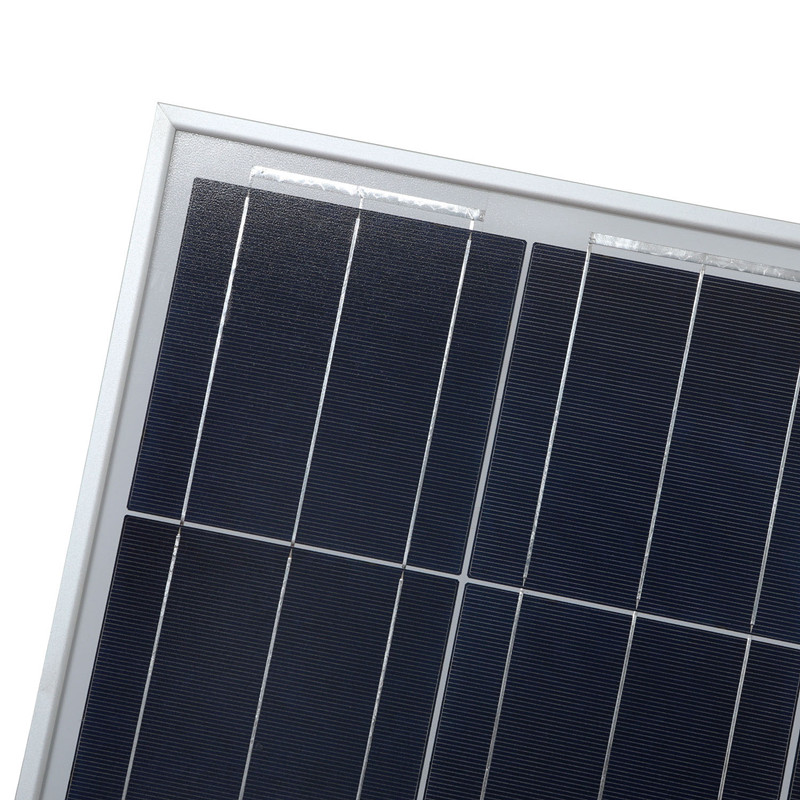

Solar cells: 36 cells,78 * 156 Polycrystalline,4 * 9 connected in series
Back side: white or black composite foil
Junction Box: 1 rear ventilated junction box
Cable: PV wire 4 mm².prefabricated with MC4 Solar-connector.or based on customers' inquiry
Frame: Anodized aluminum frame with twin-wall profile and draining holes,color based on customers'inquiry
Silicon glue for PV modules: Maximum resistance to ageing,UV-radiation,weathering and plasticizers.Total thickness:approx.1.08 mm
WARRANTIES
10 years limited product warranty.
12 years warranty on 90% of the minimum output
25 years warranty on 80% of the minimum output
Model
YH-50P
Power
50
Vmax (V)
17.28
Imax(A)
2.90
Voc(V)
21.60
Isc(A)
3.31
Cell Size(mm)
78*156
Cell(Range)
36pcs(4*9)
Module Size(mm)
450*670*25
Weight(Kg)
5.20
Temperature Coefficient:
Temperature coefficient Voc
-0.38%/°C
Temperature coefficient Isc
+0.08%/°C
Temperature coefficient Power
-0.6%/°C
Operating temperature
-40°C to+ 90°C
Power Tolerance
±5%
Standard Test Conditions
AM1.5,1000W/m²,25℃
