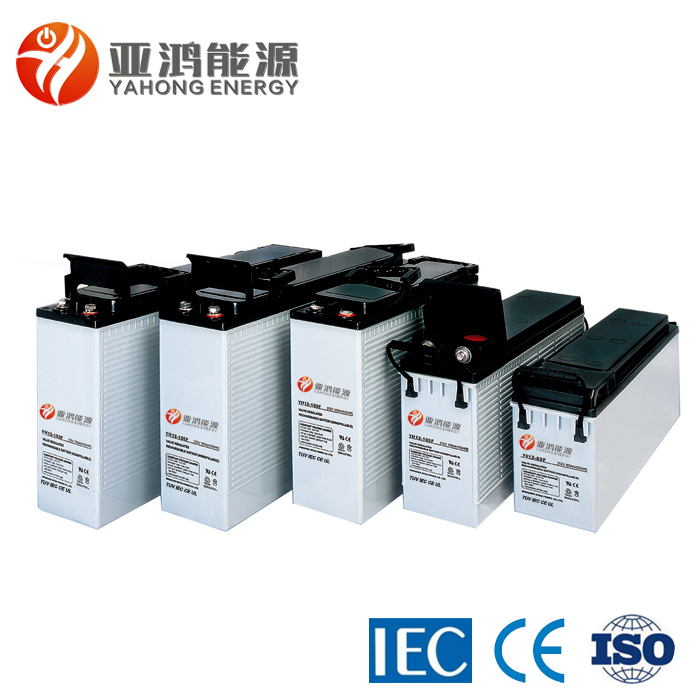

150AH，185AH Front terminal battery

Voltage Per Unit

12

Capacity

150Ah@10hr-rate to 1.80V per cell @25°C

Weight

Approx. 43.5 Kg (Tolerance±1.5%)

Internal Resistance

Approx. 4.0 mQ

Terminal

F9(M8)

Max. Discharge Current

1500A(5 sec)

Design Life

12 years (floating charge)

Maximum Charging Current

45 A

Reference Capacity

C3 111.9AH C5 128.5AH C20 150.0AH C20 158.6AH

Float Charging Voltage

13.6 V~13.8 V @25°C
Temperature Compensation: -3mV/°C/Cell

Cycle Use Voltage

14.6V-14.8V @25°C
Temperature Compensation: -4mV/°C/Cell

Operating Temperature Range

Discharge: -20°C~60°C Charge: O°C~50°C Storage: -20°C-60°C

Normal Operating Temperature Range

25°C 士 5°C
